CPVC FITTINGS IN SDR 11
COUPLER
To join two lengths of pipes
| mm | 15 | 20 | 25 | 32 | 40 | 50 |
|---|---|---|---|---|---|---|
| inch | 1/2" | 3/4" | 1" | 1¼" | 1½" | 2" |
3-Way Elbow
To interconnect three pipes.
| mm | 15 | 20 | 25 | 32 | 40 | 50 |
|---|---|---|---|---|---|---|
| inch | 1/2" | 3/4" | 1" | 1¼" | 1½" | 2" |

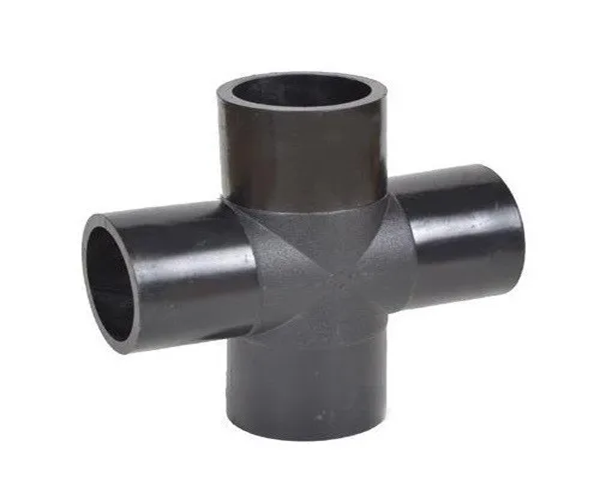

Cross TEE
To take a double bypass.
| mm | 15 | 20 | 25 | 32 | 40 | 50 |
|---|---|---|---|---|---|---|
| inch | 1/2" | 3/4" | 1" | 1¼" | 1½" | 2" |
ELBOW 90
To give a 90 turn to a pipeline
| mm | 15 | 20 | 25 | 32 | 40 | 50 |
|---|---|---|---|---|---|---|
| inch | 1/2" | 3/4" | 1" | 1¼" | 1½" | 2" |

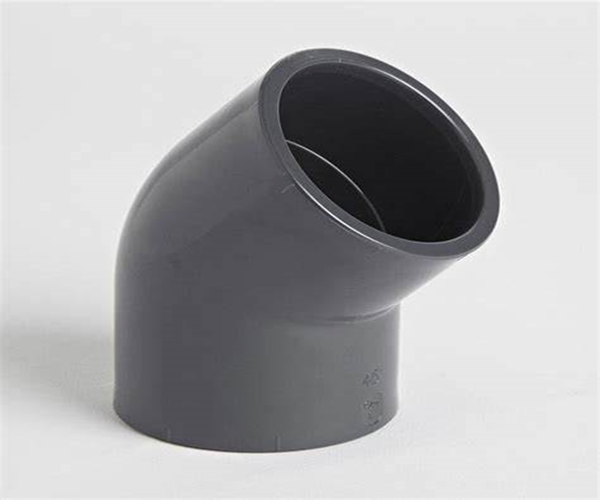

Elbow 45
To give a 45 turn to a pipeline
| mm | 15 | 20 | 25 | 32 | 40 | 50 |
|---|---|---|---|---|---|---|
| inch | 1/2" | 3/4" | 1" | 1¼" | 1½" | 2" |

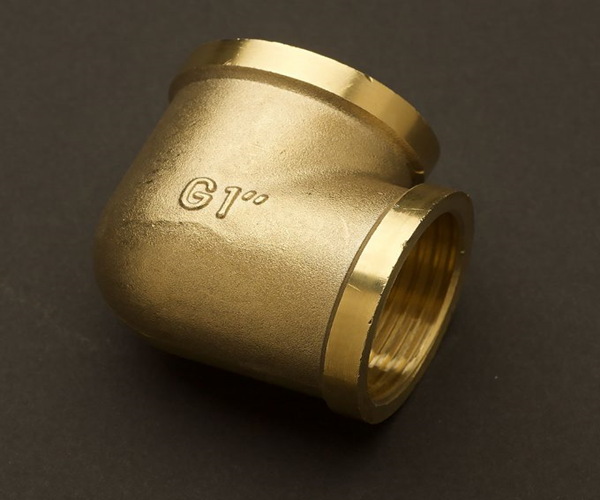

Elbow 90 Brass
To interconnect three pipes.
| mm | 15 | 20 | 25 | 32 | 40 | 50 |
|---|---|---|---|---|---|---|
| inch | 1/2" | 3/4" | 1" | 1¼" | 1½" | 2" |

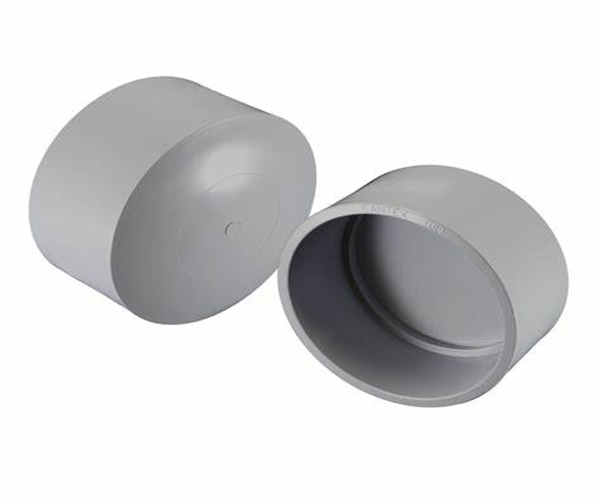

End Cap
To plug the end of a pipeline
| mm | 15 | 20 | 25 | 32 | 40 | 50 |
|---|---|---|---|---|---|---|
| inch | 1/2" | 3/4" | 1" | 1¼" | 1½" | 2" |

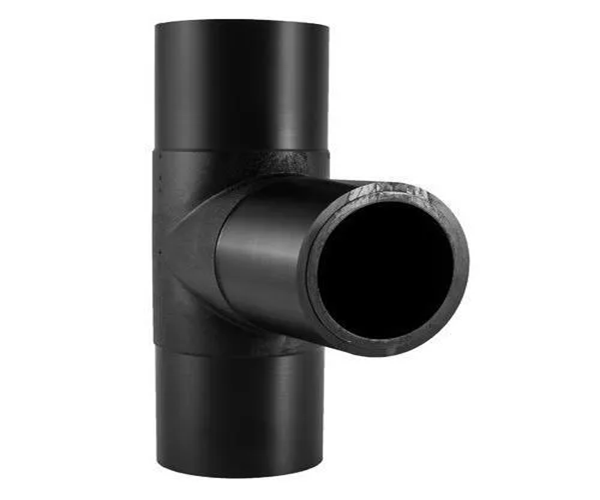

Tee
To take a bypass from main line.
| mm | 15 | 20 | 25 | 32 | 40 | 50 |
|---|---|---|---|---|---|---|
| inch | 1/2" | 3/4" | 1" | 1¼" | 1½" | 2" |
CPVC FITTINGS IN SCHEDULE 80

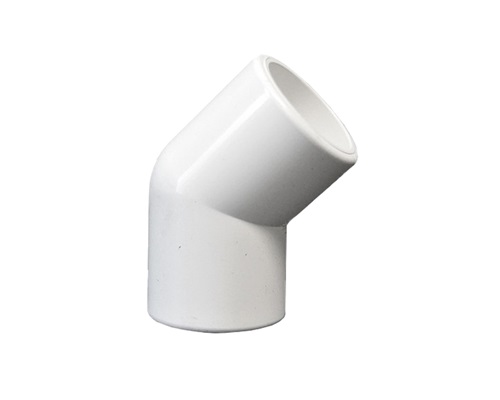

SCH 80 - ELBOW 45°
To give a 45° turn to a pipeline
| mm | 65 | 80 | 100 |
|---|---|---|---|
| inch | 2½" | 3" | 4" |
SCH 80 - END CAP
To plug the end of a pipeline
| mm | 65 | 80 | 100 |
|---|---|---|---|
| inch | 2½" | 3" | 4" |

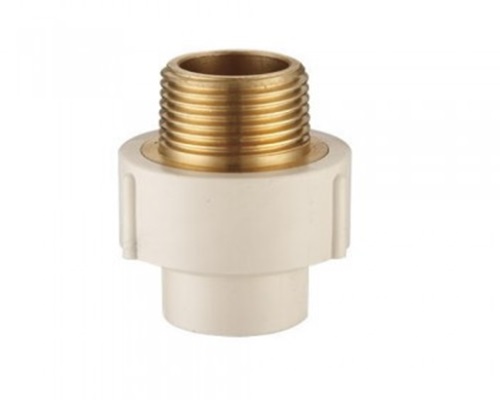

SCH 80 - MALE THREADED ADAPTER (M.T.A.)
To connect female fittings to the pipeline
| mm | 65 | 80 | 100 |
|---|---|---|---|
| inch | 2½" | 3" | 4" |

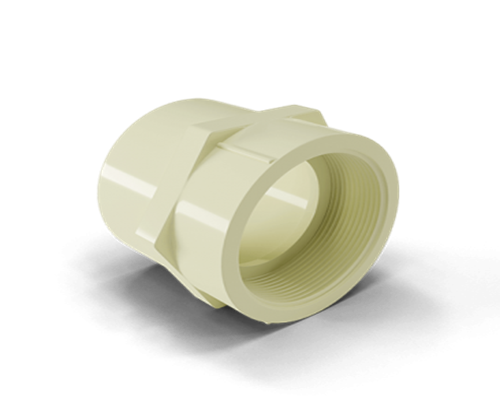

SCH 80 - FEMALE THREADED ADAPTER (F.T.A.)
To connect male threaded fittings to pipeline
| mm | 65 | 80 | 100 |
|---|---|---|---|
| inch | 2½" | 3" | 4" |

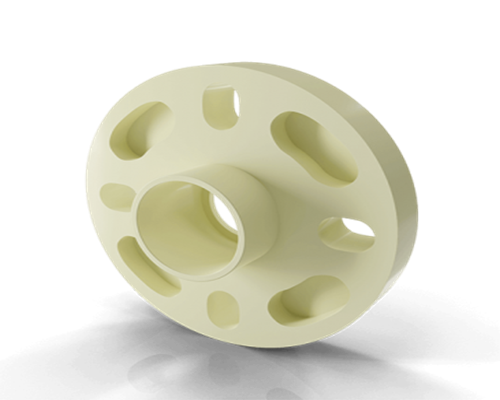

SCH 80 - FLANGE WITH GASKET - OPEN
A flange is used for connecting pipes to form a piping system.
| mm | 15 | 20 | 25 | 32 | 40 | 50 |
|---|---|---|---|---|---|---|
| inch | 1/2" | 3/4" | 1" | 1¼" | 1½" | 2" |

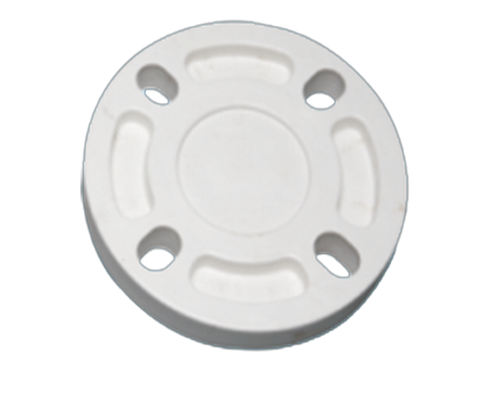

SCH 80 - FLANGE WITH GASKET - CLOSE
A flange is used for connecting pipes to form a piping system.
| mm | 15 | 20 | 25 | 32 | 40 | 50 |
|---|---|---|---|---|---|---|
| inch | 1/2" | 3/4" | 1" | 1¼" | 1½" | 2" |
SCH 80 - END CAP
To plug the end of a pipeline
| mm | 65 | 80 | 100 |
|---|---|---|---|
| inch | 2½" | 3" | 4" |
SCH 80 -
TEE
To take a bypass or service line from the main line
| mm | 65 | 80 | 100 |
|---|---|---|---|
| inch | 2½" | 3" | 4" |

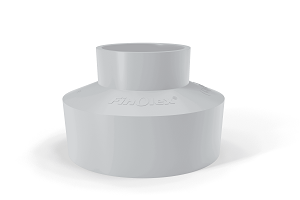

SCH 80 - REDUCER
BUSH
To reduce the internal diameter of fittings
| mm | 65 | 80 | 100 |
|---|---|---|---|
| inch | 2½" | 3" | 4" |
CPVC FITTINGS IN SCHEDULE 80
POWDER COATED METAL CLAMP FOR CPVC PIPE
POWDER COATED METAL CLAMP FOR CPVC PIPE
| mm | 15 | 20 | 25 | 32 | 40 | 50 |
|---|---|---|---|---|---|---|
| inch | 1/2" | 3/4" | 1" | 1¼" | 1½" | 2" |

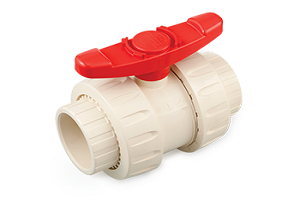

CPVC BALL VALVE
To allow disconnection of water supply for flow control.
| mm | 15 | 20 | 25 | 32 | 40 | 50 |
|---|---|---|---|---|---|---|
| inch | 1/2" | 3/4" | 1" | 1¼" | 1½" | 2" |

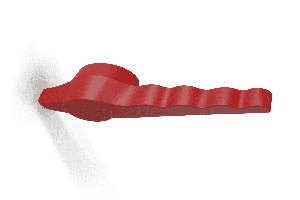

BALL VALVE -ACCESSORIES RED HANDLE
To use for on/off movement of Ball Valve
| mm | 15 | 20 | 25 | 32 | 40 |
|---|---|---|---|---|---|
| inch | 1/2" | 3/4" | 1" | 1¼" | 1½" |
REDUCING ELBOW 90°
To give a 90° turn to the
pipeline.
| mm | 20*15 | 25*15 | 25*20 | 32*15 |
|---|---|---|---|---|
| inch | ¾"x½" | 1"x½" | 1"x¾" | 1¼"x½ |
